High quality Centerifugal pump for water and beverage
Solution for high efficiecy, low noise, clamp pump head, easy to clean, simple and economical maintenance, high purity
Description
1. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.
2. Certification: 3-A-02-11 NO.1759, FDA 177.2600
CE-MD/06-42 NO.705201616101-00
Specifications
| Product Name: |
High quality Lobe pump for fluid with ABB motor |
| Pump Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
| Seal Material: |
EPDM (Standard, FDA approval) FPM (Viton) and NBR |
| Max. Flow: |
140 m³/h |
| Max. Speed: |
3600 min-1 |
| Max. Head: |
70 M |
| Max. power |
30KW |
|
Min. power
|
0.55kw
|
| Temperature Range: |
-30°C-130 °C |
| Motor: |
ABB / domestic |
| Motor Frequency: |
50HZ, 60HZ |
| Surface treatment: |
Inner polished and Sandblast outside |
| Application structure: |
LX |
| Availably connection: |
Tri-Clamp, Thread, Flange |
| Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
| Surface treatment: |
Ra≤0.6μm , EP=Ra 0.4μm
|
| Low discharge option : |
Low discharge / diaphragm valve / ball valve / butterfly valve |
| Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
| Level: |
Sanitary grade |
Feature
Motor: ABB / domestic ...
Availabe connection: tri-clamped, threaded and Flanged.
Available standard: DIN, SMS, 3A, RJT, ISO / IDF
Sealing type: machanical seal
Function: flow control
Mechanical selection (Single mechanical / Double mechanical )
Materials :
1.SIC/C/EPDM
2.SIC/C/FKM
3.C/SIC/HNBR
4.SIC/SIC/EPMD
5.SIC/SIC/FKM
6.SIC/SIC/HNBR
7.TC/TC/EPDM
8.TC/TC/FKM
9.TC/TC/HNBR
Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
Advantange
1.Maintenance disassembly and installation can be completed without professional staff and speical tools
2.Intial use of installation debugging, even if a short reverse rotaion will not be damaged
3. Impeller and shaft are connected by kewway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special-shafped flange
4.Compatible with siingle and double mechanine seal, only need to change machine seal.
Pump inlet&outlet connection various configuration

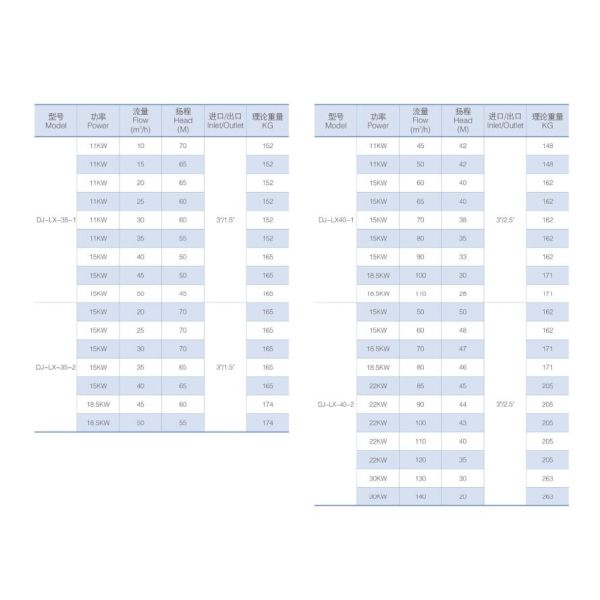

Selection Table
Drawing

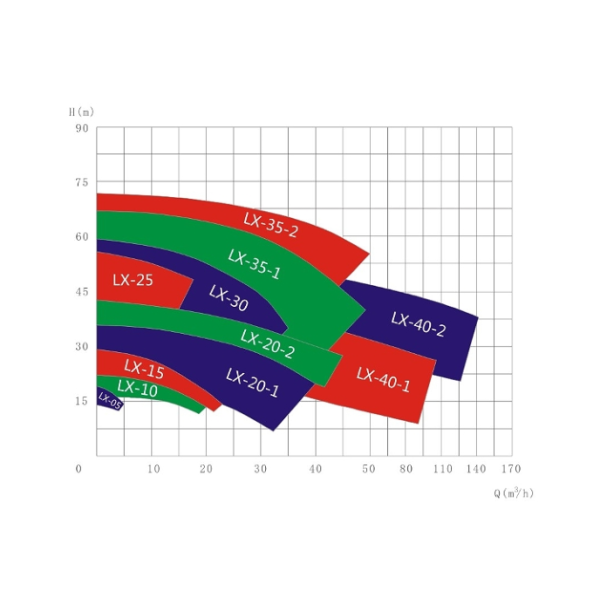

Curve
Packaging Details
Plywood case or customerized. Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
